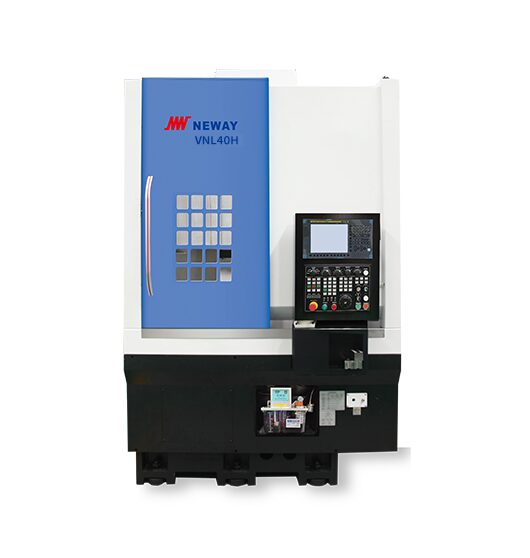

Turret-type vertical lathes
Single-column VTLs with a power chuck and a 12-station turret, on roller linear guideways. The smaller end of the line, for chucked parts to about a metre across.
Turning dia 550 to 800 mm · 18.5 / 22 kW · 12 tools
Machine line · VTLs · Vertical Turning Centres
Neway
Vertical lathes for the parts that are easier to load from above: flanges, housings, rings, valve bodies and wheels. Neway's VNL line runs from a 550 mm chuck machine to double-column machines, with live-turret and milling-spindle versions for turn-mill work in one setup.

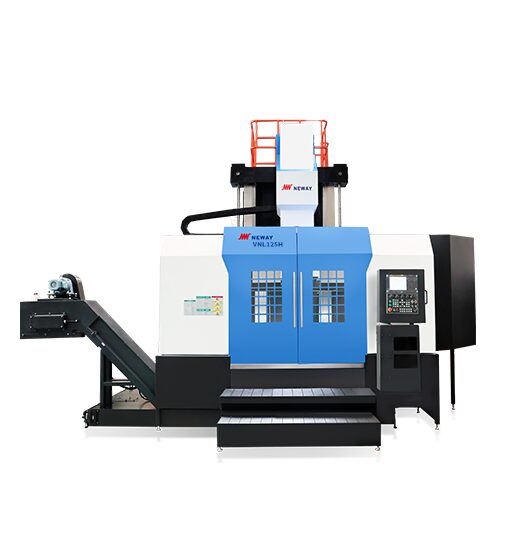

Ram-type vertical lathes
Larger single- and double-column VTLs with a ram head and a table instead of a chuck. Lead-screw pre-stretching and a combined roller and box guideway for heavy cuts on big diameters.
Turning dia 1250 to 2500 mm · tables to 16 t · to 55 kW

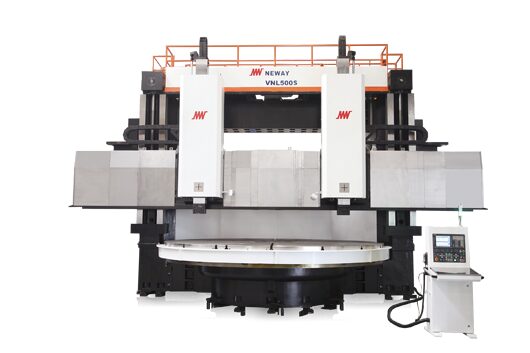

Double-column vertical lathes
Two columns, one or two rams, for the largest diameters in the line. The VNL400 and VNL500 sizes sit above the 2500 mm machines and are quoted from the current factory sheet.
VNL250DK · VNL400SK · VNL500S

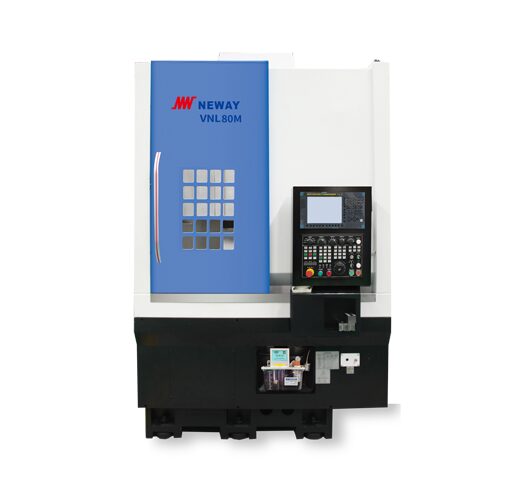

Live-turret vertical turning centres
Turret-type machines with a C axis and a driven-tool turret, so bolt circles, keyways and cross holes are cut in the turning setup.
VNL40M · VNL60M · VNL80M

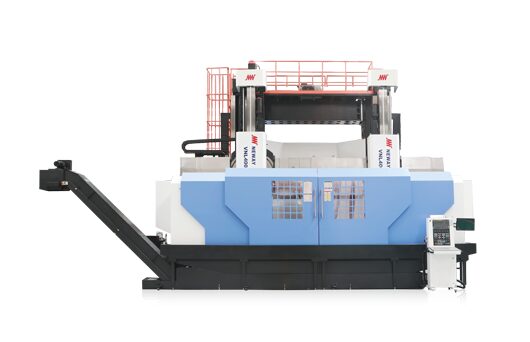

Milling-spindle vertical turning centres
Ram-type machines with a milling spindle head for turn-mill work on larger parts, up to the double-column VNL400DM.
VNL80M to VNL400DM
Vertical turning and grinding
A double-column machine with a turning ram on one side and a grinding head on the other, for turning and finish-grinding rings and discs to 2500 mm without a second machine.
VNL2506G · 16 kW grinding head
Neway CNC Equipment builds machine tools in Suzhou, China, across seven categories, with a North American technology centre, Neway CNC USA, in Stafford, Texas. Compumachine carries the VNL vertical turning line: the machine for heavy, large-diameter work that is awkward or unsafe to hold horizontally, where gravity does the fixturing. Controls are FANUC or Siemens, either available on most models.
Typical work
Large-diameter flanges, bearing housings, rings, gear blanks and valve bodies. With a live turret or milling spindle, the same setup also drills bolt circles and mills keyways and faces.
Models
| VNL50 (VNL502) | VNL65 (VNL652) | VNL80 (VNL803) | VNL125 (VNL1254) | VNL160 (VNL1605) | VNL250 (VNL2506) | |
|---|---|---|---|---|---|---|
| Max turning diameter | 550 mm | 650 mm | 800 mm | 1250 mm | 1600 mm | 2500 mm |
| Max swing | 800 mm | 900 mm | 1000 mm | 1500 mm | 1800 mm | 2750 mm |
| Chuck / table | 15 in hydraulic chuck | 18 in (Ø450) hydraulic chuck | 21 in (Ø500) hydraulic chuck | Ø1000 mm table | Ø1250 mm table | Ø2250 mm table |
| Max turning height | 600 mm | 700 mm | 800 mm | 1000 mm | 1600 mm | 2000 mm |
| Max table load | chuck-mounted | chuck-mounted | chuck-mounted | 5000 kg | 8000 kg | 16 000 kg |
| Max table speed | 1500 rpm | 1500 rpm | 1250 rpm | 500 rpm | 400 rpm | see factory sheet |
| Main motor | 18.5 / 22 kW | 18.5 / 22 kW | 18.5 / 22 kW | 30 kW | see factory sheet | 55 kW |
| Tools | 12-station turret (K: magazine) | 12-station turret | 12-station turret (K: magazine) | 4 (K: 8 magazine) | 4 (K: 12 magazine) | 1 (K: 12 magazine) |
| Turn-mill version | VNL502T, C axis + 12 live tools | VNL803T, C axis + 12 live tools | ||||
| Control | FANUC or Siemens | FANUC or Siemens | FANUC or Siemens | FANUC or Siemens | FANUC or Siemens | FANUC or Siemens |
Neway’s current line also lists the VNL100H, VNL180HK, VNL250DK, VNL400SK, VNL400DM and VNL500S, and the milling-spindle VNL125M, VNL160M and VNL250M. Their published sheets were not available when this page was written; ask us and we quote them from the current factory data.
Figures from Neway CNC's published VNL specifications (Neway catalogue pages and Neway's current product listings, checked 2026-09-27). Neway has since renumbered some models, so confirm the current sheet with us before sizing. Specifications change between model years; Dave confirms the current sheet for any machine you are sizing.
Manufacturer: Neway CNC Equipment, Suzhou; Neway CNC USA, Stafford, Texas
