Prismatic work at every size. KAFO builds machining centres from a 510 mm vertical for brackets by the hundred to double-column and gantry machines with 10 metres of travel, 30-tonne tables and 7 metres between the columns.

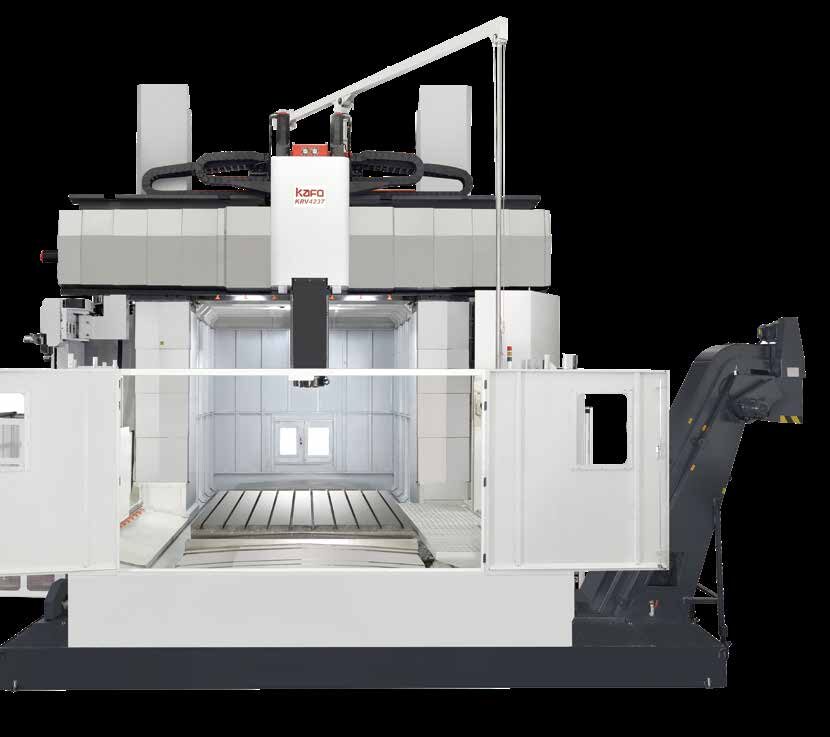

Bridge machines with a moving table between two fixed columns: the B series for three-axis work, RV with automatic 90°, universal and extension heads to cut all five faces in one setting, KRV with a moving cross rail, and RV5A with a Kessler five-axis head.
X 2.1 to 10.2 m · Y 1.2 to 5.2 m · tables to 30 t

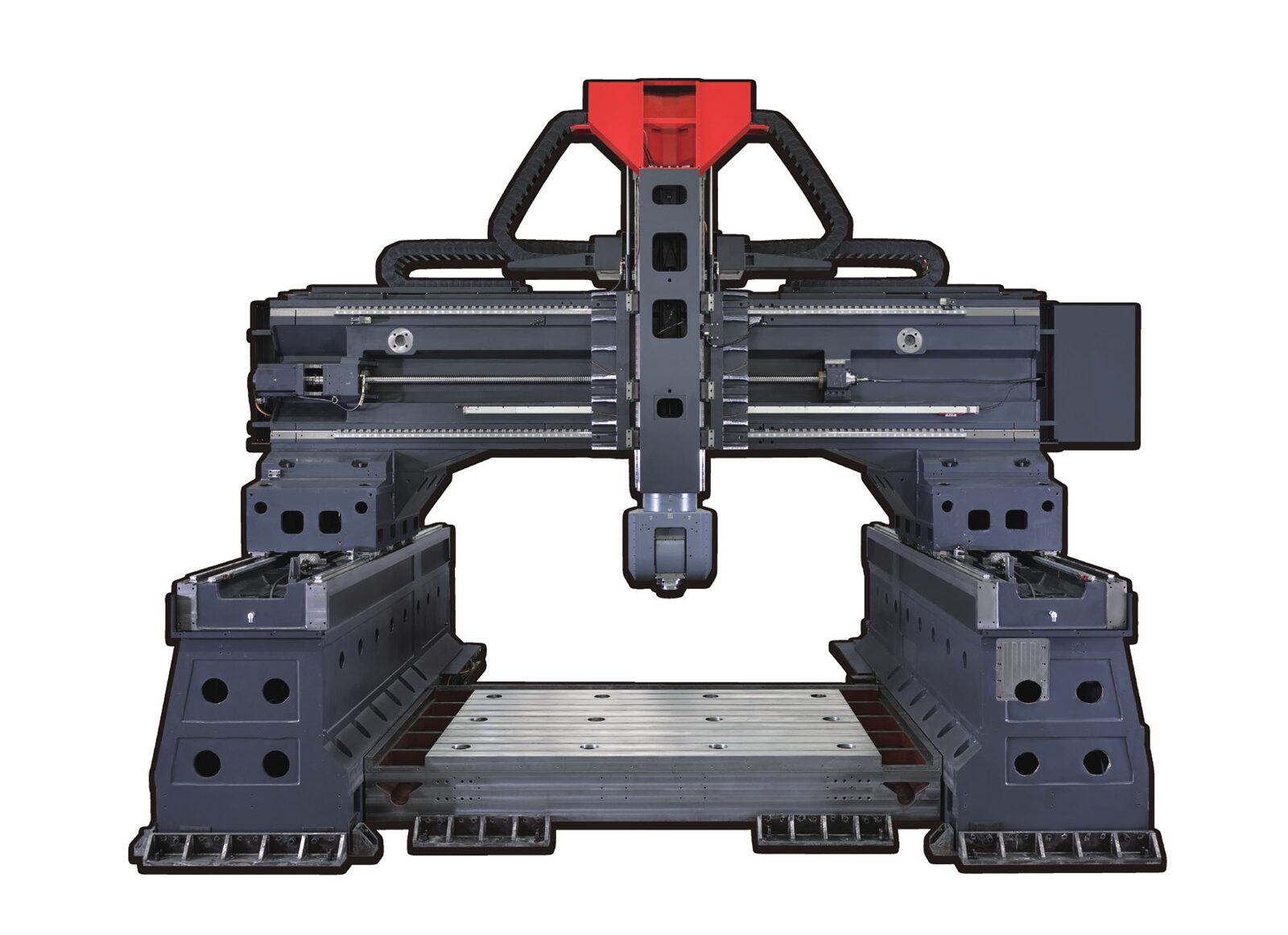

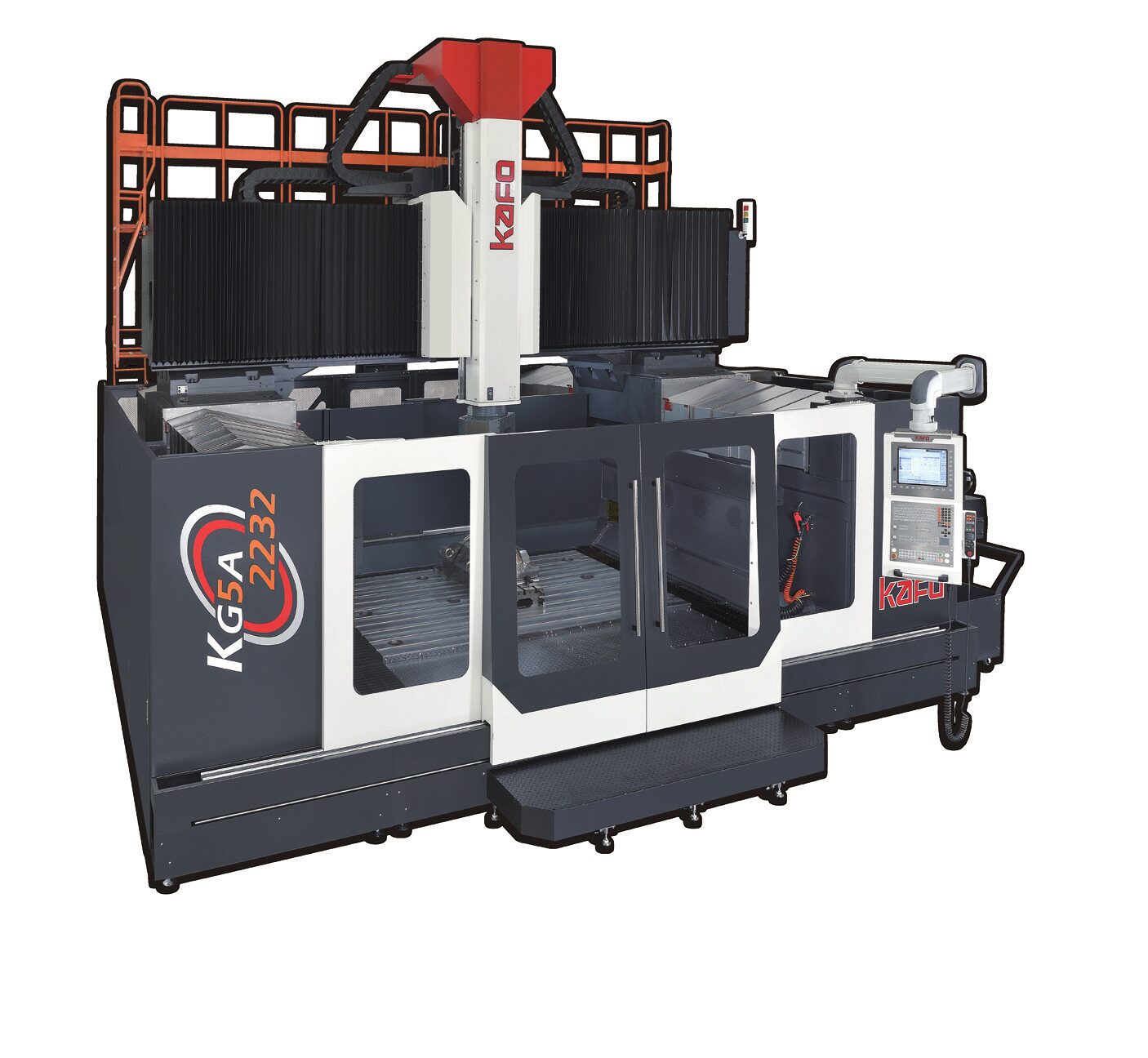

The table stays still and the bridge moves on the columns, so the machine is sized to the floor rather than to a moving table. KG5A carries a Kessler two-axis head at 12 000 or 24 000 rpm. Aerospace structures, large moulds, patterns.
X 1.7 to 10 m · Y 2.7 to 6 m · to 7 m between columns

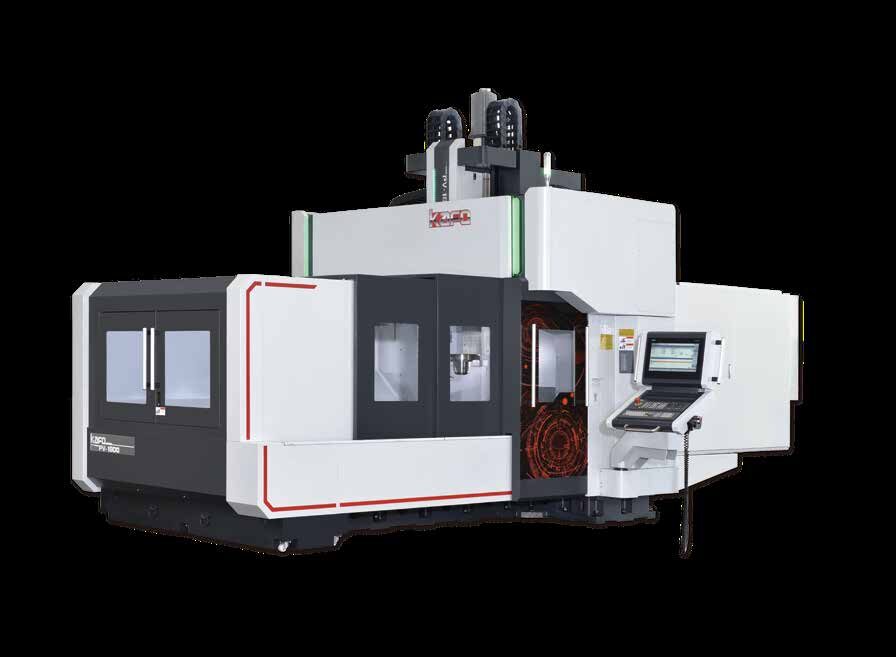

Compact bridge machines for mould and die finishing and high-speed aluminium: built-in spindles from 15 000 to 24 000 rpm, thermally symmetrical castings and linear scales on all three axes.
X 560 to 1800 mm · tables to 4 t · to 24 000 rpm

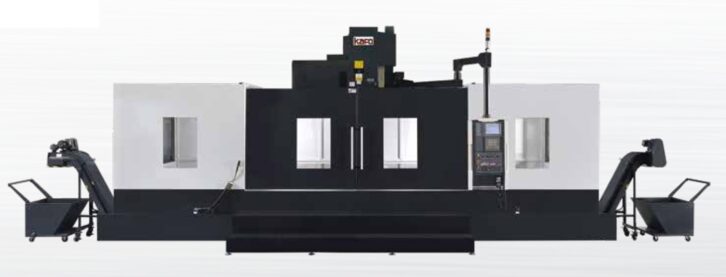

C-frame verticals in four constructions: linear-guide SCV and CV for speed, DV with a box way on Z, and box-way VMC on all three axes for heavy cutting with a gear-head #50 spindle.
X 510 to 3100 mm · tables to 4 t

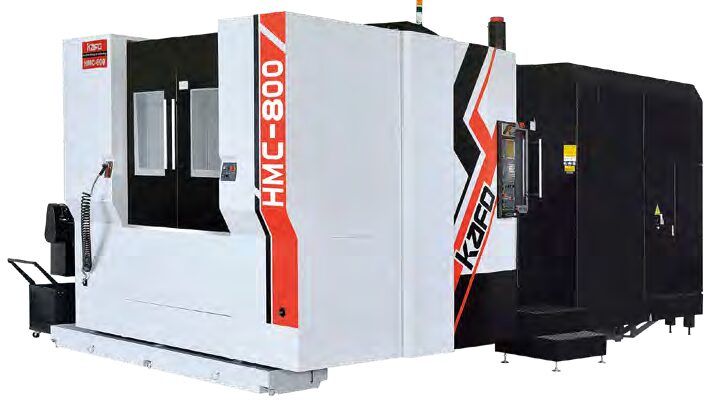

Pallet-type horizontals with built-in 10 000 rpm #50 spindles, two pallets standard and a six-pallet changer optional, indexing at 0.001°. For production of housings and cast prismatic parts.
Pallets 500 to 1000 mm square · to 2.5 t per pallet

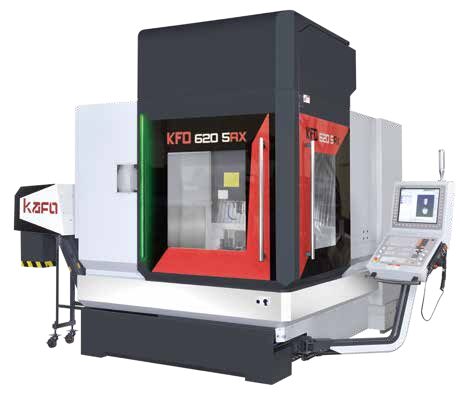

Trunnion-table verticals for one-setup complex parts: the KFO-620-5AX with a 650 mm tilting-rotary table, and the CV-400 and CV-500 in 4+1 positioning or full simultaneous versions.
Tables Ø350 to Ø650 mm · to 20 000 rpm
KAFO, Kao Fong Machinery of Taichung, Taiwan, builds machining centres and nothing else, across a wider size range than any other builder we represent: from a tapping-class vertical with 510 mm of travel to bridge and gantry machines with over 10 metres of X travel. Controls are Fanuc, Mitsubishi, Siemens or Heidenhain on most series. KAFO offers both constructions: roller linear guides where speed matters, box ways where the cut is heavy.
Die and mould, large aluminium and aerospace structures, machine bases and transport parts on the double-column and gantry machines. Automotive, electronics and aerospace components on the verticals and horizontals. Blades, implants, wheels and drive parts on the 5-axis machines.
Model numbers give the X travel and the Y travel in decimetres, so a B-5127 is 5100 mm by 2700 mm. Each cross width is built in the X lengths listed.
| Cross width (Y) | X travel | Table | Table load | Between columns | Series |
|---|---|---|---|---|---|
| 1200 mm | 2100 / 3100 mm | 2000 to 3000 × 1100 mm | 4000 to 5000 kg | 1370 mm | B-2012, B-3012 (A: #40, direct drive) |
| 1500 mm | 2100 / 3100 mm | to 3000 × 1400 mm | 6000 to 7000 kg | 1670 mm | B-2015, B-3015 |
| 1800 mm | 2600 to 5100 mm | to 5000 × 1600 mm | 9000 to 17 000 kg | 1895 mm | B-2618 to B-5118 |
| 2200 / 2300 mm | 2600 to 10 100 mm | to 10 000 × 2100 mm | 11 000 to 29 000 kg | 2300 mm | B-2622 to B-10122; RV-2622 to RV-5122 |
| 2700 mm | 2600 to 10 100 mm | to 10 000 × 2600 mm | 11 000 to 29 000 kg | 2800 mm | B-3127 to B-10127; RV-2627 to RV-10127 |
| 3100 / 3500 mm | 3100 to 10 100 mm | to 10 000 × 2900 mm | 14 000 to 29 000 kg | 2750 to 3250 mm | B-4131 to B-10131; RV-3135 to RV-10135 |
| 4000 / 4200 mm | 4100 to 10 100 mm | to 10 000 × 3500 mm | 18 000 to 29 000 kg | 3250 to 3800 mm | B-4140 to B-10140; RV-4140 to RV-10142 |
| 4700 mm | 5100 to 10 100 mm | to 10 000 × 3700 mm | 19 000 to 29 000 kg | 4400 mm | B-5147 to B-10147; RV-5147 to RV-10147 |
| 5200 mm | 5100 to 10 100 mm | to 10 000 × 4000 mm | 20 000 to 30 000 kg | 4900 mm | B-5152 to B-10152; RV-5152 to RV-10152 |
Common to the series: BBT-50 gear-head spindle, 6000 rpm, 22 / 26 kW (30 / 37 optional; 37 / 45 kW on the RV-x152), Z 900 to 1300 mm, 30-tool magazine (40 / 60; RV vertical-horizontal 60 to 120), roller linear guides on X and Y with a box way on Z up to the 4000 mm widths and roller linear on all axes above. Control Fanuc 0i-MF Plus standard; Fanuc 31i, Mitsubishi and Heidenhain optional.
| KRV-x232 | KRV-x237 | KRV-x242 | RV5A-3135 to 6135 | |
|---|---|---|---|---|
| X travel | 4200 to 10 200 mm | 4200 to 10 200 mm | 4200 to 10 200 mm | 3100 to 6100 mm |
| Y travel | 3200 mm | 3700 mm | 4200 mm | 3500 mm |
| Cross-rail travel (W) | 1000 mm (1700 optional) | 1000 mm (1700) | 1000 mm (1700) | fixed |
| Table | 4000 to 10 000 × 2000 mm | 4000 to 10 000 × 2500 mm | 4000 to 10 000 × 3000 mm | 3000 to 6000 × 2100 mm |
| Table load | 25 to 30 t | 25 to 30 t | 25 to 30 t | 13 000 to 22 000 kg |
| Between columns | 2750 mm | 3250 mm | 3750 mm | 2750 mm |
| Spindle | BBT-50 built-in, 6000 rpm (8000), 37 / 45 kW | same | same | Kessler HSK-A100 5-axis head, 12 000 rpm, 25 / 30 kW |
| Control | quoted with the machine | quoted with the machine | quoted with the machine | Siemens 840D or Heidenhain iTNC 640 |
| KG-1727 | KG-2232 | KG-4040 to 10040 | KG-5050 to 10050 | KG-6060 to 10060 | |
|---|---|---|---|---|---|
| X travel | 1700 mm | 2200 mm | 4000 to 10 000 mm | 5000 to 10 000 mm | 6000 to 10 000 mm |
| Y travel | 2700 mm | 3200 mm | 4000 mm | 5000 mm | 6000 mm |
| Z travel | 1100 mm (1300) | 1100 mm (1300) | 1100 mm (1300) | 1100 mm (1300) | 1100 mm (1300) |
| Floor table | 1600 × 2600 mm | 2100 × 3100 mm | to 10 000 × 3800 mm | to 10 000 × 4800 mm | to 10 000 × 5800 mm |
| Between columns | 3760 mm | 4260 mm | 5090 mm | 6090 mm | 7090 mm |
| Table loading | 2500 kg/m² | 2500 kg/m² | 2500 kg/m² | 2500 kg/m² | 2500 kg/m² |
| Head (KG5A) | Kessler A/C, HSK-A100 12 000 rpm 25 / 30 kW or HSK-A63 24 000 rpm 37 / 46 kW | same | same | same | same |
| Control | Heidenhain iTNC 640; Siemens 840D sl optional | same | same | same | same |
KG and KGM are the three-axis versions; KGM and KGM5A have no tool changer.
| P/PV-58 | P/PV-68 | P/PV-1310 | P/PV-1318 | P/PV-1800 | |
|---|---|---|---|---|---|
| X / Y / Z | 560 / 460 / 460 mm | 1100 / 610 / 460 mm | 1300 / 1000 / 700 mm | 1800 / 1300 / 700 mm | 1800 / 1300 / 700 mm |
| Table | 760 × 460 mm | 1250 × 610 mm | 1300 × 1000 mm | 2000 × 1300 mm | 2000 × 1300 mm |
| Table load | 500 kg | 1000 kg | 2000 kg | 4000 kg | 4000 kg |
| Between columns | 860 mm | 1100 mm | 1500 mm | 1500 mm | 1500 mm |
| Spindle | BBT-40 built-in, 15 000 / 20 000 rpm | BBT-40 built-in, 15 000 / 20 000 rpm | HSK-A63 built-in, 15 000 to 24 000 rpm | HSK-A63, 15 000 to 24 000 rpm | HSK-A63, 15 000 to 24 000 rpm |
| Magazine | 20 / 32 | 24 / 30 / 32 | 16 to 40 | 16 to 40 | 16 to 40 |
| Control | Siemens, Fanuc, Heidenhain | same | Siemens, Heidenhain (Fanuc on request) | same | same |
| SCV-5 | CV-9A | CV-12A | CV-168 | VMC-1370 | VMC-2100 | VMC-3100 | |
|---|---|---|---|---|---|---|---|
| X / Y / Z | 510 / 420 / 400 mm | 900 / 600 / 600 mm | 1270 / 650 / 650 mm | 1600 / 850 / 800 mm | 1400 / 700 / 700 mm | 2100 / 1020 / 900 mm | 3100 / 1020 / 900 mm |
| Table | 650 × 420 mm | 1000 × 600 mm | 1350 × 650 mm | 1700 × 850 mm | 1500 × 700 mm | 2100 × 1000 mm | 3100 × 1000 mm |
| Table load | 300 kg | 650 kg | 1000 kg | 1500 kg | 1500 kg | 3000 kg | 4000 kg |
| Spindle | #30 direct drive 12 000 rpm (to 24 000) | #40 direct drive 10 000 rpm (12 000 / 15 000) | #40 direct drive 10 000 rpm | #50 gear head 6000 rpm | #50 gear head 6000 rpm | #50 gear head 6000 rpm | #50 gear head 6000 rpm |
| Motor | 3.5 / 5.5 kW | 7.5 / 11 kW | 7.5 / 11 kW | 15 / 18.5 kW | 15 / 18.5 kW | 15 / 18.5 kW | 15 / 18.5 kW |
| Ways | linear | roller linear | roller linear | roller linear | box way | box way | box way |
| Control | Fanuc 0i-MF Plus | Fanuc, Mitsubishi, Siemens, Heidenhain | same | same | same | same | same |
The full vertical range is 43 models: SCV, SV, CV (8 to 168, plus the CV-9 pallet changer and CV-24W wheel machine), DV with a box way on Z, and VMC box-way machines from 1100 to 3100 mm. An M suffix is the same machine without a tool changer.
| HMC-500 | HMC-630 | HMC-800 | HMC-1000 | HF-500 (5-axis) | |
|---|---|---|---|---|---|
| X / Y / Z | 720 / 650 / 650 mm | 1050 / 800 / 880 mm | 1400 / 1200 / 1325 mm | 1700 / 1400 / 1525 mm | 750 / 850 / 650 mm |
| Pallet | 500 × 500 mm, 2 pallets | 630 × 630 mm, 2 pallets | 800 × 800 mm, 2 pallets | 1000 × 1000 mm, 2 pallets | Ø500 mm A/B cradle |
| Pallet load | 800 kg | 1200 kg | 2000 kg | 2500 kg | 300 kg |
| Spindle | BBT-50 built-in 10 000 rpm, 25 / 30 kW | same | same | same | BBT-40 built-in 20 000 rpm, 18.5 / 26 kW |
| Control | Fanuc, Mitsubishi, Siemens | same | same | same | Siemens |
| KFO-620-5AX | CV-400U / A | CV-500U / A | |
|---|---|---|---|
| X / Y / Z | 620 / 520 / 460 mm | 650 / 600 / 510 mm | 550 / 630 / 610 mm |
| Table | Ø650 mm, B −50° to +110°, C 360° | Ø350 mm, A −30° to +120°, C 360° | Ø410 mm, A −30° to +120°, C 360° |
| Max workpiece | Ø520 × 330 mm, 200 to 300 kg | Ø400 × 300 mm, 200 kg | Ø500 × 300 mm, 200 kg |
| Spindle | #40 direct drive 12 000 rpm (to 20 000 built-in) | same | same |
| Control | Heidenhain iTNC 640 or Siemens 840D sl | Fanuc, Siemens, Mitsubishi, Heidenhain | same |
U is 4+1 positioning; A is full five-axis simultaneous.
Figures from KAFO catalogues (Vertical, 5-axis and High-speed Double Column, February 2023; Double Column, May 2023; Gantry 5-axis, February 2019; Horizontal, undated). Specifications change between model years; Dave confirms the current sheet for any machine you are sizing.
Manufacturer: KAFO (Kao Fong Machinery, Taichung), through Hankook America
